Professional Reliable High Quality
High quality UV

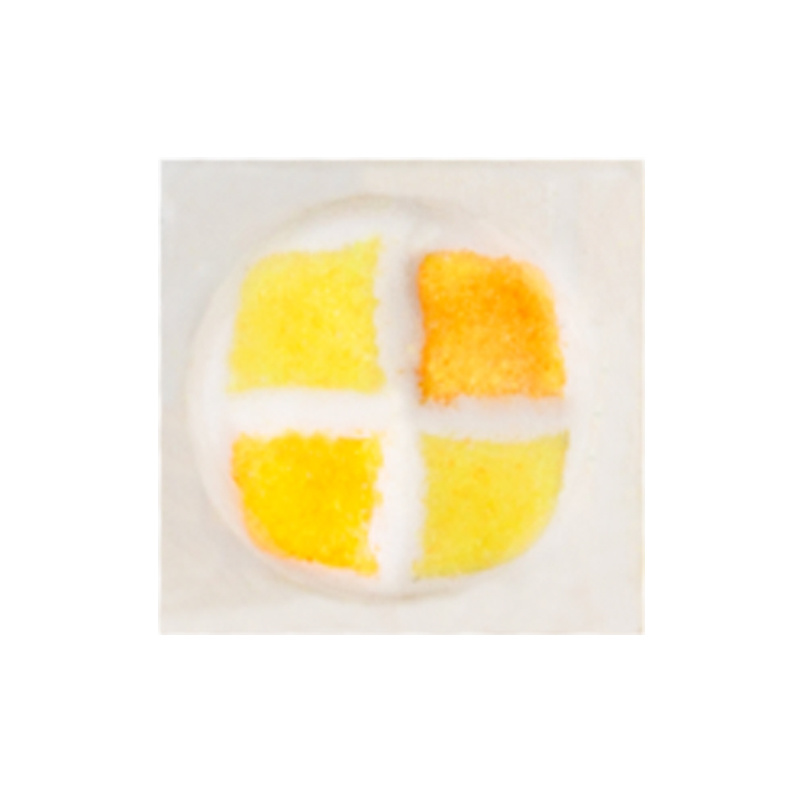

Product details
Process features:
2040 High Voltage 18V Flip Chip
High temperature solder paste solidification
White light is powder spraying process
3.0 ball head 120 degrees
|
Product Specifications |
Color temperature （K） |
Typical power （W） |
Maximum power （W） |
Typical current （mA） |
Maximum current （mA） |
Voltage （V） |
Luminous flux/Im | CRI |
| 3535WC5 | 2700 | 1.8 | 2.5 | 50 | 70 | 34-38 | 120-150 | ≥90 |
| 3000 | 1.8 | 2.5 | 50 | 70 | 34-38 | 125-155 | ≥90 | |
| 4000 | 1.8 | 2.5 | 50 | 70 | 34-38 | 140-170 | ≥90 | |
| 5000 | 1.8 | 2.5 | 50 | 70 | 34-38 | 145-175 | ≥90 | |
| 5700 | 1.8 | 2.5 | 50 | 70 | 34-38 | 114-175 | ≥90 | |
| 6500 | 1.8 | 2.5 | 50 | 70 | 34-38 | 140-170 | ≥90 |
